Q.
a) With the use of diagram, label the elements of a timber staircase. (10 marks)
b) Explain three (3) principles of the construction of domestic staircases. (15 marks)
(25 marks, 2013 Q4)
A.
a)

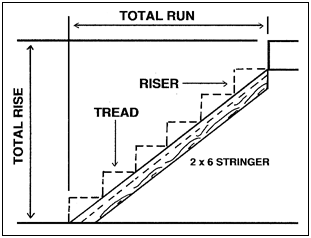

Key terms of a stair are Riser, Tread, Total Rise and Total Run. The whole skeleton sits on the Stringer. See below for the terms:

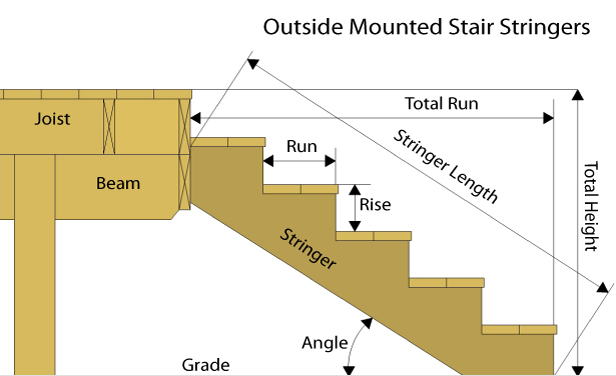

When there is handrail, it is fixed on to the Wall String. Wall String can be tempered glass. The handrail can also be fixed onto a beam or stringer. See below:

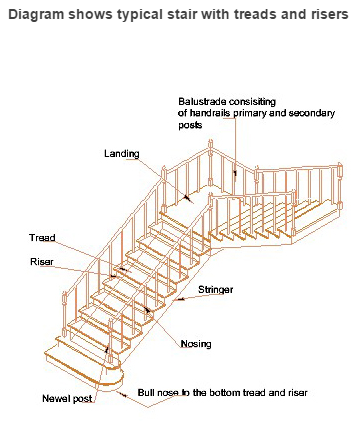

A complete staircase drawing is shown below:
Ref:
http://www.askthebuilder.com/building-simple-staircases/
http://www.pistonheads.com/gassing/topic.asp?t=1175832
http://www.interiordezine.com/stairs/parts-of-a-staircase/
Ref:
Faculty of Civil Engineering and Building Services, IASI Romania, available at
http://www.ce.tuiasi.ro/~cci/UTI%20website/Cap5_Stairs.pdf
b)
3 Principles of Staircase Design
While designing stairs the house owner should consider every design requirement of the stairs since well designed stairs provide easy access to upper floors of the house. The steps of stairs may be constructed as a series of horizontal treads. The tread is horizontal width of stairs step whereas the enclosed space between treads is known as riser. The part of building having stairs is known as staircase. This article tells you about necessary design requirements to be kept in mind while designing stairs.
Essential requirements of stairs
You can design comfy stairways concerning average human height. During design process many things such as dimensions of an average person, average comfortable walking stride; fixing gradient or pitch of stairs, height of hand rail and minimum head room should be considered. A well designed stair has easy access and proportions of treads and risers should be more than twice the rise.
Various stair layouts from straight flight to a number of intricate curves and landings have similar basic principle of stair design. The stairs should be comfortable to walk on not only for the young but also for the old. People usually prefer to the straight stairways for easy access to upwards and downwards.
Materials for construction of stairs
The most commonly used materials in construction of stairs are - stone, timber, steel and RCC.
Design requirements for stairs
1. Width of stairs
Minimum width of stairs for single family house should be 75 cm and if the number of users is more than 10, minimum width of stairs should be 95 cm whereas minimum width of stairs for two or more family houses should be 100 cm and if the number of users is more than 10, minimum width of stairs should be 125 cm. Minimum width of stairs for hotels, offices, educational buildings, theaters, cinema halls should be 1.5 meters while minimum width of stairs for institutional buildings and hospitals etc. should be 2 meters.Note: The width of landing should be more or at least equal to the length of steps. It is preferable to provide two or more staircases where the number of users exceeds 300.
2. Tread of stairs
Minimum width of a tread for residential building should be 250 mm. In special case due to non availability of space, the minimum width of tread for residential building and small commercial units should be 200 mm. Minimum width of a tread for non residential building should be 300 mm.
Tread: it is horizontal width of a stair step
3. Riser of stairs
Maximum height of riser for residential building should be 190 to 200 mm whereas maximum height of riser for non residential building should be 150 to 170 mm.
Riser: it is the height of a stair step
4. Slope of stairs
Minimum slope of stairs with floor should be 26 degrees whereas maximum slope of stairs with floor should be 45 degrees. Ideal slope of stairs with floor should be 30 degrees.
5. Hand Railing
Hand Railing should be made at stairs for comfort while going up and down the stairs. The height of handrail should not be less than 800 mm and more than 900 mm.
6. Provision of light
The stairs should be well lighted with two ways electric switches provided at top and foot of stairs.
Ref:
Gharexpert.com, available at
http://www.gharexpert.com/articles/Layout-House-Plans-2041/How-to-Design-Stairs-_0.aspx
